MIDMARK M9 M11 (New Style) SOLENOID VALVE (VENT) RPI Part #MIV139 OEM Part #002-1361-00/014-0420-03

RPI Part #MIV139
OEM Part #002-1361-00/014-0420-03

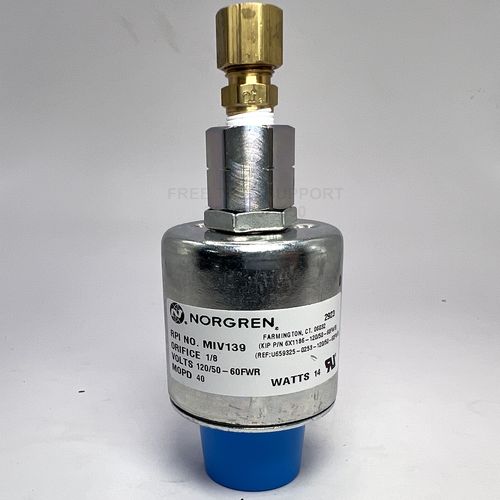

SOLENOID VALVE (VENT)

• Piston Style Valve Operator Only
• Material: Viton seat; Manifold mount; AC valve
• 120 VAC 50/60Hz. FWR; 14W
• Need Repair Kit? (RPI Part # MIK110)
• Need Coil? (RPI Part # RCC114)
• See NOTES below for Serial # breakdown

Fits: Manifold Block Assembly newer style units
Model(s) This Part Fits: M11, M11D, M9, M9D

Notes:

Includes:

• Male Connector (RPI Part #RPF228)

Also Included in:

• Fill/Vent Valve Assembly (RPI Part #MIA137)

Also Available

• Solenoid Valve (Fill) (RPI Part # MIV138)
• Manifold Block Assembly (RPI Part #MIA096)
• Spanner Nut (RPI Part #ILS014)
• Double Ended Wrench (RPI Part #RPT501)

Serial # Prefix breakdown

• Fits M9-020 thru -022 with Serial # prefixes RN, RP, RR & V.
• Fits M9D-020 thru -022 with Serial # prefixes RW, RX & V.
• Fits M11-020 thru -022 with Serial # prefixes RS, RT, RV & V.
• Fits M11D-020 thru -022 with Serial # prefixes RY, RZ & V.
