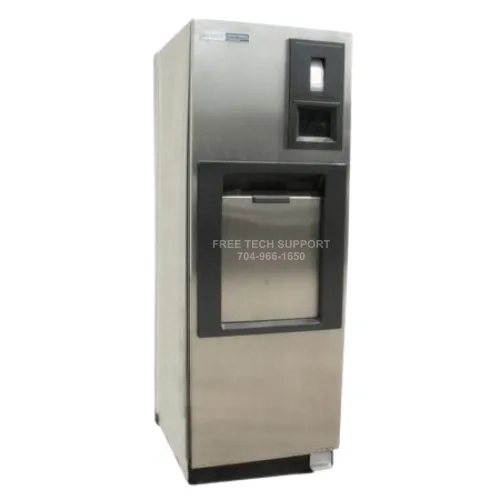

Refurbished Steris Amsco Model V116 Steam Sterilizer
This Steris V116 Steam Sterilizer is designed for fast, efficient sterilization of heat and water-resistant materials with the same capabilities as a gravity sterilizer.
Steris Amsco Model V116 Specifications Include:
- Chamber Size: 16″ x 16″ x 26” (406mm x 406mm x 660mm)
- Overall Exterior Dimensions (including door lock-wheel with door closed): 74.5″H x 30″W x 35.75″D (1892mm x 762mm x 908mm)
- Operating Temperature: 250ºF to 270ºF (121ºC to 132ºC)
- One (1) Rack, Two (2) Shelves
- Touch Screen Display
Cycles Include:
- Pre-Vac
- Gravity
- Flash
- Express
- Leak Test
- Daily Air Removal
Call 704-966-1650 option 1 for additional options, installation and de-installation and annual maintenance services!
$29,000.00
Steris Amsco Model V116 Steam Sterilizer Features Include:

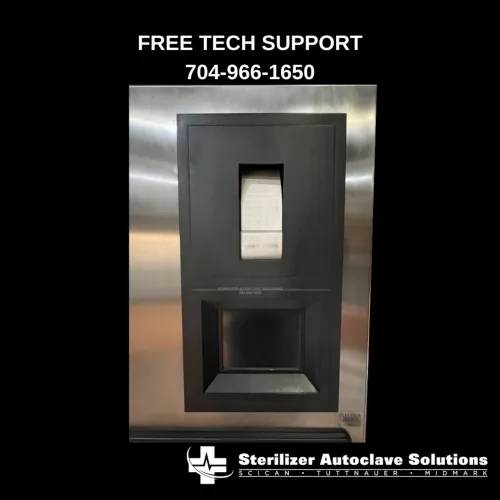

- Florescent display for easy reading
- Ink on paper impact printer

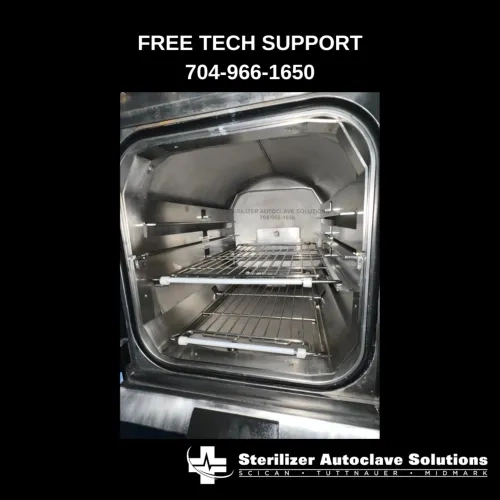

- 16″ x 16″ x 26″ chamber
- Rack and 2 shelves
- Freestanding unit
- Vertical Door
- Pre-vacuum Steam Sterilizer
- Fast & efficient
- Emergency manual exhaust valve
- Non-lubricated, steam-activated door seal
- Help screens for programming/troubleshooting alarm conditions
Factory-Set Cycles and Cycle Values
Pre-Vacuum Sterilizer Cycles and Cycle Values
| Cycles | Sterilizer Temp. | Sterilizer Time | Dry Time | Recommended Load | Validation Standard |
|---|---|---|---|---|---|
| PREVAC | 270°F (132°C) | 4 MIN. | 5 MIN. | Single Fabric Pack | ST-8 |
| PREVAC | 270°F (132°C) | 4 MIN. | 20 MIN. | Double-wrapped instrument trays, max. weight of 17 lbs (7.7 kg) each. Fabric packs. | ST-8 |
| GRAVITY | 250°F (121°C) | 30 MIN | 15 MIN | Fabric packs. | ST-8 |
| LIQUID | 250°F (121°C) | 45 MIN | 0 MIN | ST-8 |
Steam Flush Pressure-Pulse Sterilizer Cycles and Cycle Values
| Cycles | Sterilizer Temp. | Sterilizer Time | Dry Time | Recommended Load | Validation Standard |
|---|---|---|---|---|---|
| WRAP/SFPP | 270°F (132°C) | 4 MIN. | 20 MIN. | Double-wrapped instrument trays, max. wt.: 17 lbs (7.7 kg) each. Non-porous Goods, only. | ST-8 |
| SFPP | 270°F (132°C) | 4 MIN. | 20 MIN. | Fabric Packs. | ST-8 |
| PREVAC | 270°F (132°C) | 4 MIN | 20 MIN | Double-wrapped instrument trays, max. wt.: 17 lbs (7.7 kg) each. Fabric Packs. | ST-8 |
| VACUUM | 250°F (121°C) | 30 MIN | 15 MIN | Fabric Packs | ST-8 |
| Test Cycles for All Units | Sterilizer Temp. | Sterilizer Time | Dry Time | Recommended Load | Validation Standard |
|---|---|---|---|---|---|
| Leak Test | 270°F (132°C) | N/A | N/A | N/A | ST-8 |
| SFPP | 270°F (132°C) | 3-1/2 MIN. | 1 MIN. | DART or Bowie-Dick Test Pack | ST-8 |
| PREVAC | 270°F (132°C) | 3 MIN | 1 MIN | N/A | N/A |
Call 704-966-1650 option 1 for additional options, installation and de-installation and annual maintenance services!
Steris Amsco Model V116 Specifications:
- Chamber Size: 16″ x 16″ x 26” (406mm x 406mm x 660mm)
- Overall Exterior Dimensions (including door lock-wheel with door closed): 74.5″H x 30″W x 35.75″D (1892mm x 762mm x 908mm)
- Operating Temperature: 250ºF to 270ºF (121ºC to 132ºC)
- One (1) Rack, Two (2) Shelves
- Touch Screen Display
