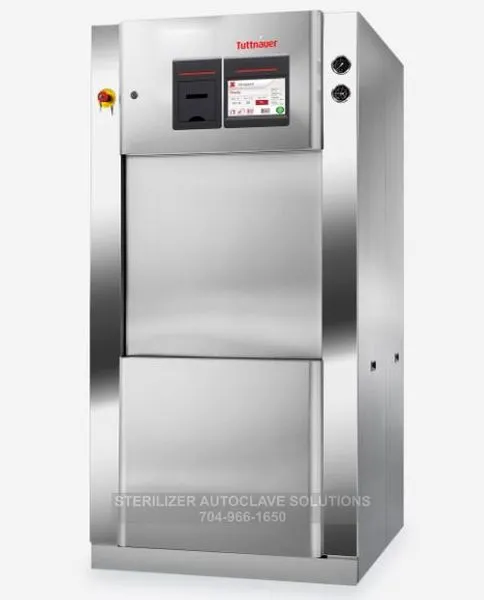

Tuttnauer 5596 Compact Series Stand-Alone Autoclave


FREE SHIPPING!!!
New – 250 Liter Tuttnauer 5596 Compact Series Stand-Alone Autoclave brings High Performance and Low Maintenance. Users have an easy-to-use 7-inch touch pad to select sterilizing programs or create their own program for equipment. Security features include access levels and user passwords, ethernet connection, and an internal battery backup.
  • Narrow and Compact
  • Eco-Friendly
  • Diverse Load Types
  • CacSoft Control System
  • Stainless Steel Piping
  • Load Traceability

CALL FOR PRICING 704-966-1650 opt. 1

The Tuttnauer 5596 Compact Series Stand-Alone Autoclave is designed for hospital operating rooms, central sterile supply departments, ambulatory surgery centers, dental schools, and other clinical settings. FDA cleared, these autoclaves come standard with IUSS, wrapped, IUSS delicate and wrapped delicate cycles: to sterilize surgical instruments, utensils, gowns, goods and other healthcare instruments and supplies. The Tuttnauer 5596 Autoclave is equipped with reliable non-proprietary components, maximizing “uptime” while providing an ultra-low total cost of ownership. Autoclaves continue to be the first line of defense against infection and Tuttnauer takes this responsibility seriously.

  • Narrow and Compact – The slim design allows you to fit these models into a small space while maximizing load capacity.
  • Eco-Friendly – Utilizing house supplied chilled water can reduce consumption up to 90%, making your facility greener and more cost-efficient
  • Diverse Load Types – Comes with a total of 9 programs that range in temperature from 105°C – 137°C
  • BacSoft Control System – User-friendly interface with printer and USB port for transferring cycle data all come standard. *Optional R. PC. R Software.
  • Stainless Steel Piping – Piping is made of top-quality stainless steel to avoid corrosion and contamination of the sterilized loads.
  • Load Traceability – Transfer cycle data and associated barcodes to a PC with optional remote monitoring software and barcode scanner.
See the Other Hospital Autoclaves we have available here
  • Overall Dimensions WxHxL: (Inches) 33” x 75” x 53”
  • Chamber Dimensions Ø x L: (inches) – 20” x 20″ x 38”
  • Chamber Volume: Cubic Feet 9, Liters 250
  • Door Type: Automatic Vertical Sliding Door
  • Shelf Dimensions W x H x L: (inches) – Small: 11.9” x 0.8” x 27.6” Large: 18.6” x 0.8” x 27.6”
  • Steam Options: House Steam Standard (Optional Integral Steam Generator)
  • Electrical Requirements (Control System): 1-Phase, 120v, 50/60Hz. 20A.
  • Mounting Options: Cabinet Enclosed or Recessed Through Wall (Left or Right Service)
  • Class Type: Class B Pre/Post Vacuum Standard
  • Loading Equipment: Rack & 2 Shelves Standard (Optional Loading Car & Transfer Carriage)
  • Autoclave Weight: (Lbs) 1760
  • Building Drain: 2″ ODT.
  • Plant Steam Supply Pipe Size: 3/4″ NPT.
  • Plant Steam Supply Flow Rate: 100 Lbs/Hr Peak – 22 Lbs/Cycle Avg.
  • Compressed Air Requirements: 75-95 PSIG Dynamic, 3.5 SCFM. 3/8” NPT.
