W&H Lexa Sterilizer MN-111 110V – Set 1 Value – 90000284


$7,999.00

Exam Gloves

(1000 Gloves) + $132.00 W/ Free shipping!

(1500 Gloves) + $132.00 W/ Free shipping!

(1500 Gloves) + $132.00 W/ Free shipping!

(1500 Gloves) + $132.00 W/ Free shipping!

(1500 Gloves) + $132.00 W/ Free shipping!

Product price: $7,999.00
Total options:
Order total:

High capacity and efficiency

Lexa offers versatile cycle program options for medium and larger loads, guaranteed by the closed-door drying process with HEPA filters and the use of fresh water for each cycle.

Sterilization on a high standard

Built to offer more of all that counts in every day medical infection control.

Your sterilization process deserves Lexa!

  • Increased efficiency due to the large chamber capacity and short cycle times, including excellent load drying.
  • Increased flexibility due to the user-friendly tray and exclusive rack design.
  • Increased usability due to the simple and intuitive menu interface, high-end color touchdisplay and ergonomic design.
  • Increased protection due to a complete and customizable traceability system.

Icon used to represent fast autoclave cycles. Fastest Cycles depending on the load

Icon used to represent flexible autoclave cycles Flexibility in cycle selection

Icon used to represent ease of use Ease of use thanks to smart interface and user-friendly menu structure

Icon used to represent extended traceability Extended Traceability (optional) thank to Wi-Fi connection and Mobile App

Icon used to represent automatic water filling Automatic water filling (optional) for time saving and ease of use

Icon used to represent user authentication and load release option User authentication and load release option (optional) for a complete and customized traceability system

Icon used to represent built-in usb data logger Built-in USB logger for the digital cycle documentation

Icon used to represent barcode label printer Barcode label printer (optional) for the extension of the documentation system

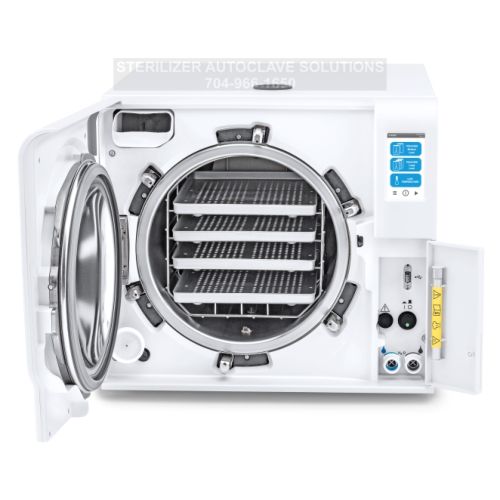

W&H Lexa with the door open and showing 3 different load layouts.8 kg (18 lbs) sterilized and dried in 30 minutes!

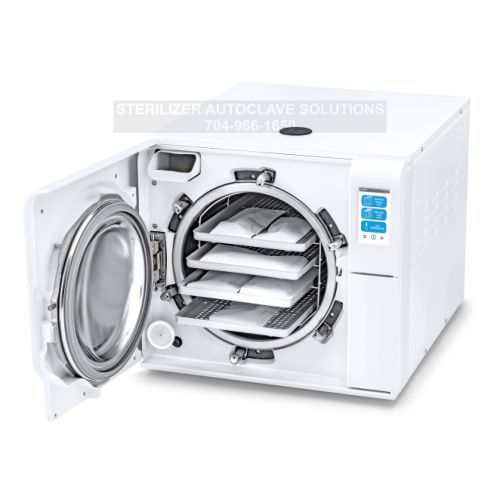

Higher efficiency due to higher capacity … Lexa comes with 4 large trays along with a unique rack providing larger loading surface and more loading options.

… and less cycle time. Lexa offers versatile program options for medium and larger loads in order to reduce overall cycle duration.

Your advantages at a glance

  • User-friendly interface and high-end colour touchscreen for simple navigation to all sterilization option
  • Customizable drying time
  • Large capacity sterilizer chamber with unique tray and exclusive design
  • Versatile sterilization program options with short cycle times
  • Superior vacuum-assisted drying
  • Meets stringent hygiene standards, including dynamic pulsed air removal, closed door drying and single-use water management
  • Easy maintenance – Lexa does not require periodic execution of cleaning cycles
  • Programmable cycle start
  • Excellent value for money
  • Automatic digital cycle recording on USB stick
  • User authentication and load release (optional)
  • Barcode label printing (optional)



Sterilization CycleUnwrappedPouches
Medium Load
Pouches
Large Load
Pouches &
Wrapped Cassettes
Wrapped CassettesLow
Temperature
Temperature:132°C (270°F)132°C (270°F)132°C (270°F)132°C (270°F)132°C (270°F)121°C (250°F)
Holding time (minutes):4’4’4’4’4’30’
Total cycle duration (minutes) including drying*:26’–39’43’–53’48’–58’53'-64'58'-71'73’–79’
Max. load (excluding trays):8.1 kg (18 lbs)1.4 kg (3 lbs)2.7 kg (6 lbs)5.0 kg (11 lbs)6.4 kg (14 lbs)2.3 & 2 kg (5 & 4.4 lbs)
including trays
* Cycle times are approximate and may vary depending on voltage and instrument loads.

Lexa sterilizers were designed, certified, and validated according to the following standards and directives.

93/42/CEEMedical Device Directive
EN 13060Small steam sterilizer
IEC 61326-1Electromagnetic compatibility
IEC 61010-1Safety requirements
IEC 61010-2-040Specific requirements for steam sterilizer
IEC 61770Back syphonage
ASME*Boiler and pressure vessel code
ANSI/AAMI ST55Table-top steam sterilizers
CSA C22.2 No. 61010-1-12Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements.
2012/19/EUWaste Electrical and Electronic Equipment (WEEE)
UL 61010-1Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements.
The sterilizer can be validated according to EN ISO 17665-1
*On Request

The W&H Lexa MN-111 Instructions for Use is Available Here!

SKU: 90000284 Categories: , Tags: ,
Lexa 110 V
Type:MN-111
Chamber size:28 l (7.4 gal)
Power supply:100–125 V AC; 50/60 Hz; 12 A Single Phase
Overall dimension
(width x height x depth):
490 x 452 x 616 mm (19.3“ x 17.8“ x 24.3“)
Weight:48 kg (105.8 lbs)
Main / Used water tanks:6.4/6.7 l (1.7/1.8 gal)
Connection types:2 USB ports, 1 Ethernet port (optional)
