This is a Midmark M7 M9 M11 AIR VENT BELLOWS ASSEMBLY RPI #RCB100.
This is a Midmark M7 M9 M11 AIR VENT BELLOWS ASSEMBLY RPI #RCB100.
, , , , , , ,

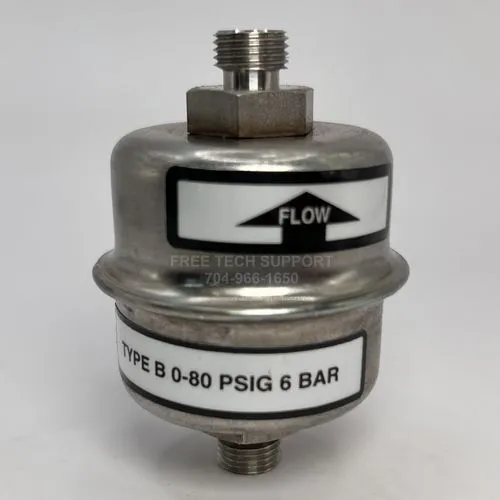

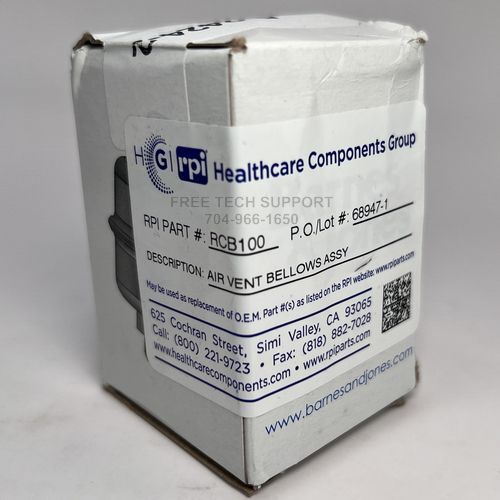

Midmark M7 M9 M11 AIR VENT BELLOWS ASSEMBLY RPI #RCB100 OEM Part #002-0375-00/014-0193-00

RPI Part #RCB100
OEM Part #002-0375-00/014-0193-00

AIR VENT BELLOWS ASSEMBLY

  • 1/4” compression fittings both ends
  • Material: Bronze bellows style; Stainless steel housing
  • Actuates within 5°F of saturated steam temperature
  • See below for serial numbers this part fits

Fits: Chamber to Condensing Tank (older style units)

Model(s) This Part Fits: M7, M9, M9D, M11, M11D

  • Model M7 -Also fits new model 7’s
  • M9-001 thru -019
  • M9D-001 thru -019
  • M11-001 thru -019
  • M11D-001 thru -019

See Service Tip Below ↓

$260.00

FREE SHIPPING!

Midmark M7 M9 M11 AIR VENT BELLOWS ASSEMBLY RPI #RCB100 OEM Part #002-0375-00/014-0193-00

SERVICE TIP: RPI now offers two different Air Vent Bellows Assemblies – RPI Part #RCB100 and RCB089. There are two different styles of assemblies – the diaphragm style and the bellows style. Here’s the difference.

Currently, the RPI RCB089 and the OEM’s are both diaphragm style assemblies. This style has only one convolution doing all the work.

The other style is a bellows assembly – the RPI RCB100. This style assembly, offered only by RPI, has several convolutions doing all of the work so it lasts much longer than the diaphragm style.

More Scican Statim RPI Parts Available →
