Scican Statim 2000 AIR COMPRESSOR KIT RPI Part #SCK020 OEM Part #01-100560S

RPI Part #SCK020
OEM Part #01-100560S

AIR COMPRESSOR KIT

• 28mA @ 115VAC; 50/60 HZ.
• Rated air flow: 0.177 cfm
• Rated pressure: 2.84 PSI
• Wire leads: #22 AWG x 22” long
• See Notes: below

Fits: Chassis
Model(s) This Part Fits: Statim 2000, Statim G4 2000

Notes:

Service Tip #1: A leaky check valve can cause moisture or steam to seep inside a compressor thus causing the compressor to fail. To avoid this problem, replace the check valve when replacing the compressor and replace the check valve every 2 years.

Service Tip #2: – The OEM recommends replacing the Compressor Filters every 6 months or every 500 cycles (whichever comes first).

The RPI Advantage – The RPI tubing in the Check Valve Kit (RPI Part #SCK011) is translucent – making it easy to see a leaky check valve. For your convenience, RPI includes a check valve in the Air Compressor Kit (RPI Part #SCK020)!

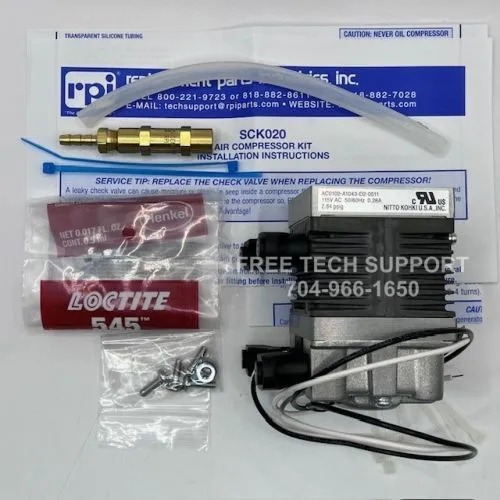

Includes:

• Air Compressor
• Check Valve Kit (RPI Part #SCK011)
• Cable Ties (RPI Part #RPT083)
• Air Compressor Filter (RPI Part #SCF002) installed
• Mounting hardware
