Tuttnauer 5075HSG Pre Post Vacuum Autoclave (Floor Sterilizer)

Tuttnauer

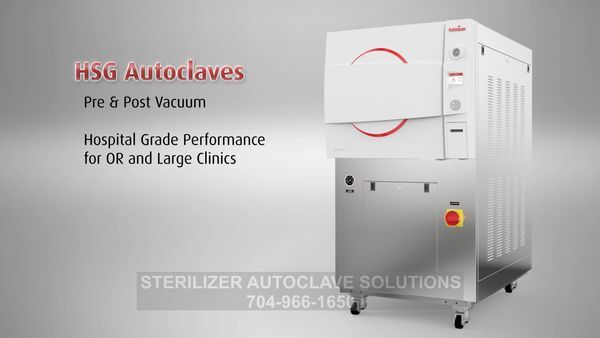

New Tuttnauer 5075HSG Pre & Post Vacuum Autoclave
  • Controls: Automatic
  • Chamber Size: 19.5″ x 29.5″
  • Volume: 42.27 gallons (160 Liters)

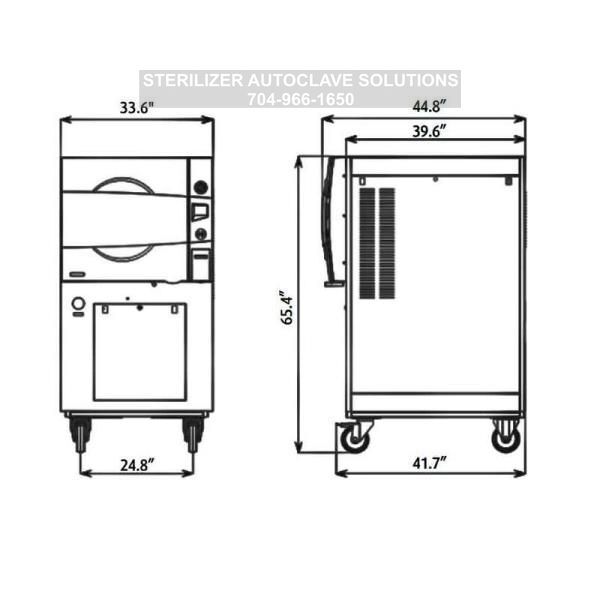

  • Dimensions (W x H x L): 33.6″ x 65.4″ x 44.8″
  • Standard Shelves: 2
  • Shelf Size (W x H x L): Small: 11.9″ x 0.8″ x 27.6″ / Large: 18.6″ x 0.8″ x 27.6″
  • Autoclave Weight: 935
  • Electrical Requirements (Control System, Vacuum Pump) 1-Phase, 120V, 20 AMP
  • Electrical Requirements ( 20kW Generator ) 3-Phase, 208V, 56 AMP (Draw)
  • 3-Phase, 480V, 25 AMP (Draw)
  • Includes built-in generator
The 5075HSG is a fully featured 160 liter stand-alone pre & post vacuum autoclave. Many years of expertise with industrial sterilization technology have been packaged into the 5075 autoclave models to make them ideal Class B healthcare autoclaves.
The 5075HSG is a free-standing, cabinet enclosed unit with a wheel mounted design to facilitate installation. They are as simple and easy to use as any Tuttnauer tabletop autoclave.
The 5075HSG comes with a built-in 20kW carbon steel electric steam generator for fast sterilization cycles. The generator also comes standard with an automatic blow down feature.
The 5075HSG autoclave chamber is surrounded by a coiled jacket that increases overall cycle speed and performance by maintaining chamber warmth when in stand-by mode. The coiled jacket also ensures uniform heat distribution throughout the chamber. The system provides a deep and powerful vacuum due to a high volume water-ring vacuum pump for reliable and complete air removal. The 5075HSG offers all the features and reliability of a large capacity autoclave at a fraction of the size and cost.
Features:

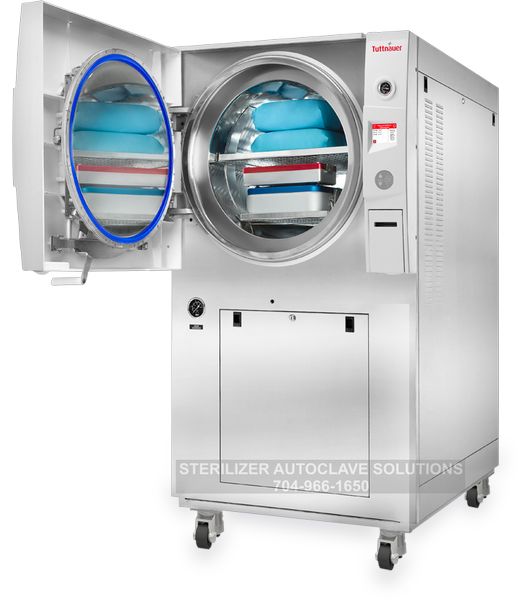

  • 316L grade stainless steel chamber and door with electropolish finish
  • Two RTD load probes for liquid cycles
  • High volume water-ring vacuum pump for fast and efficient air removal
  • Stand-by heating mode keeps the autoclave warm and ready for use
  • Double locking safety device prevents door from opening at high pressure and high temperature
  • Control lock-out switch prevents starting a cycle if door is not properly locked
  • Built-in alpha-numeric printer
  • Mounted on wheels for easy mobility and sterilization on demand
Model Chamber Dimensions
(W x H x L inches)
Chamber Volume
Cubic Feet (Liter)
Door Type Steam Options Mounting Options Loading Equipment
5075HSG 19.5 x 29.5 6
160
Manual Hinged Swing Out Door Integral Steam Generator Standard Cabinet Enclosed Standard Rack & 2 Shelves Standard
4472 16 x 16 x 28 4
120
Automatic Vertical Sliding Door House Steam Standard
(Optional Integral Steam Generator)
Cabinet Enclosed or Recessed Through Wall (Left or Right Service) Rack & 2 Shelves Standard (optional loading cart & transfer carriage)
5596 20 x 20 x 38 9
250
Automatic Vertical Sliding Door House Steam Standard
(Optional Integral Steam Generator)
Cabinet Enclosed or Recessed Through Wall (Left or Right Service) Rack & 2 Shelves Standard (optional loading cart & transfer carriage)
6690 26 x 26 x 39

(26 x 26 x 49 also available)

15
430
Automatic Vertical Sliding Door House Steam Standard
(Optional Integral Steam Generator)
Cabinet Enclosed or Recessed Through Wall (Left or Right Service) Rack & 2 Shelves Standard (optional loading cart & transfer carriage)
6990 24 x 36 x 36 18
510
Automatic Hinged Swing Out Door House Steam Standard
(Optional Stand Alone Steam Generator)
Cabinet Enclosed or Recessed Through Wall (Left or Right Service) Rack & 2 Shelves Standard (optional loading cart & transfer carriage)
69120 24 x 36 x 48 24
680
Automatic Hinged Swing Out Door House Steam Standard
(Optional Stand Alone Steam Generator)
Cabinet Enclosed or Recessed Through Wall (Left or Right Serv ice) Loading Cart & Transfer Carriage Standard
69180 24 x 36 x 72 36
1010
Automatic Hinged Swing Out Door House Steam Standard
(Optional Stand Alone Steam Generator)
Cabinet Enclosed or Recessed Through Wall (Left or Right Service) Loading Cart & Transfer Carriage Standard

$45,000.00 $50,000.00

Cleaner

+ $45.00

Buy one get one free!

Product price
Additional options total:
Order total:

FREE SHIPPING!!!



Tuttnauer 5075HSG Pre Post Vacuum Autoclave (Floor Sterilizer)

A free-standing, cabinet enclosed unit is simple and easy to use as any tabletop autoclave. One year on parts and one year on labor. The ASME pressure vessel is warranted to the original owner against material and workmanship failure for a period of 10 years from the date of initial operation.

The 5075HSG is a fully featured 160 liter stand-alone pre & post vacuum autoclave. Many years of expertise with industrial sterilization technology are packaged into the 5075 autoclave making them ideal Class B autoclaves for Life Science and Hospital sterilization.



Brands

Tuttnauer

Condition

New

Mode

Automatic

Price

$40,001 – $45,000

Warranty

1 Year

Chamber Size

19.5" x 29.5"

Tuttnauer_5075HSG_Pre_Post_Vac_Brochure
