NEW – Midmark M9-050 Steam Sterilizer 115V 5 YR WRNTY
5th Gen Midmark M9-050 Steam Sterilizer 115V 5 YR WRNTY
The 5th Generation Midmark M9 Steam Sterilizer combines advanced technology with intuitive design for reliable instrument sterilization. Its 5-inch touchscreen, usable with gloves, simplifies navigation and offers light and dark modes. Enhanced compliance features include automated cycle recordkeeping, device reminders, notifications, user authentication, and unlimited storage of care events, ensuring audit-readiness and reducing errors.
The reengineered chamber supports up to 25,000 cycles, extending device life and reducing maintenance. Automated monitoring and reporting save time and simplify staff training, ensuring high standards with minimal intervention.
$9,649.00

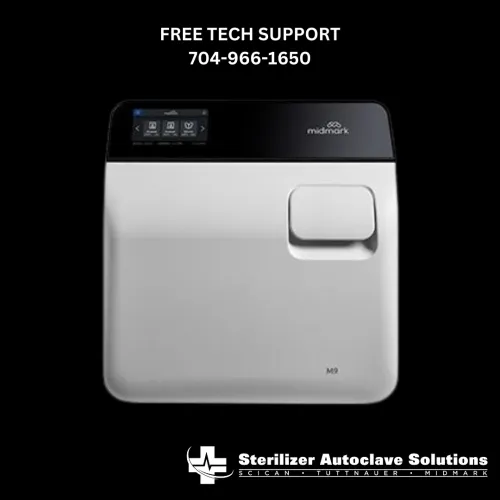

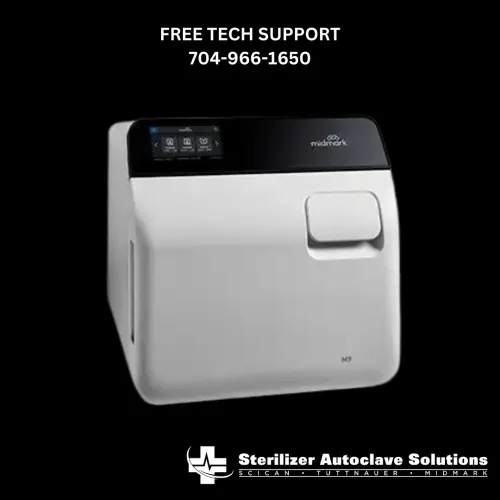

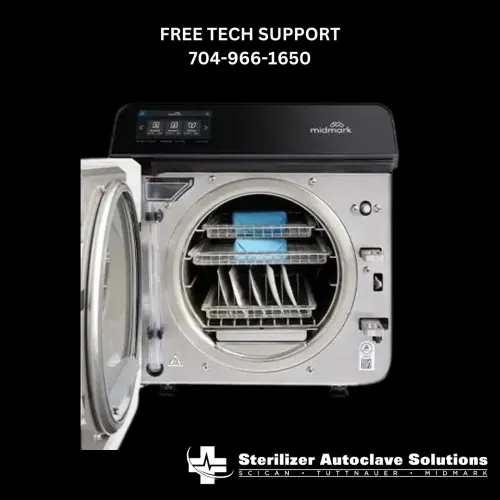

Midmark M9-050 Steam Sterilizer 5th Generation
Midmark® Steam Sterilizers are designed with intuitive instructions that can simplify compliance, cycle operation, and performing and recording device care. This can help reduce transcription and documentation errors which could account for 56% of sterilization errors.1 Automated mechanical monitoring and chemical indicator reporting can save time, helping simplify staff training and giving them confidence to process instruments.
Features
- Intuitive User Interface
- Navigate cycle setup and other processes with a clear, fingerprint-resistant 5-inch touchscreen you can utilize while wearing gloves. Choose a style—light or dark.
- Streamlined Compliance Recordkeeping
- Stay audit-ready with device reminders and notifications, user authentication, unlimited storage of routine care events for the life of the sterilizer, and automated cycle recordkeeping.
Durability
Midmark sterilizers have been designed for durability, including an increased device life of 25,000 cycles thanks to a completely reengineered chamber. This can reduce the frequency of required maintenance by users and certified technicians by more than half.
5th Generation Midmark 050 Steam Sterilizer Videos
Technical Specifications
| LENGTH WITH PLUG | 20.5" (52 cm) |
| WIDTH | 15.8" (40.1 cm) |
| HEIGHT | 16.6" (42.2 cm) |
| SUPPORT SURFACE REQUIREMENTS | 19.8" x 23.5" (50.3 x 59.7 cm) |
| CHAMBER | 9" x 15" (22.9 x 38.1 cm) |
| LARGE STANDARD TRAY | (Usable tray area) 7.3" x 12" x .9" (18.6 x 30.5 x 2.2 cm) |
| SMALL STANDARD TRAY | (Usable tray area) 5.6" x 12" x .9" (14.3 x 30.5 x 2.2 cm) |
| POUCH RACK | 5 Slot |
| UNIT WEIGHT | 82 lb (37.2 kg) |
| SHIPPING WEIGHT | 92 lb ( (41.7 kg) |
| WATER RESERVOIR CAPACITY | 1.1 gal (4.1 L) to full mark .6 gal (2.3 L) usable volume |
| ELECTRICAL REQUIREMENTS | 115 VAC, 12 Amp, 50/60 Hz |
Cycle Parameters
| Cycle Type | Temperatur Minimum | Time | Pressure Reference* | Drying Time** | M9 Maximum Capacity*** |
|---|---|---|---|---|---|
| Wrapped 1 | 270°F (132°C) | 4 min. | 27.1 psi (186 kPa) | 30 min. | 8.0 lb (3,629 g) or 8 handpieces (2 per tray) with other instruments 8.0 lb (3,629 g) total |
| Wrapped 2 | 275°F (135°C) | 3 min. | 31 psi (214 kPa) | 30 min. | 8.0 lb (3,629 g) or 8 handpieces (2 per tray) with other instruments 8.0 lb (3,629 g) total |
| Delicate | 250°F (121°C) | 3 min. | 15 psi (104 kPa) | 30 min | 8.0 lb (3,629 g) or 1.3 lb (590 g) textile load |
| Unwrapped | 270°F (132°C) | 3 min. | 27.1 psi (186 kPa) | 30 min. | 8.0 lb (3,629 g) |
| Custom | 250°F (121°C) to 275°F (130°C) | 3 min. to 45 min. | 15 psi (104 kPa) to 31 psi (214 kPa) | 0 min. to 60 min. | 8.0 lb (3,629 g) |
| * The pressures shown in this table are at sea level and are for reference only. These are the ideal pressure of saturated steam at the sterilization temperature. The pressures on the sterilizer display may be higher. |
|||||
| ** Dry time can be changed from 5 to 60 minutes. (IUSS dry time can be changed from 1 to 5 minutes.) (If Slow Vent option is enabled, the dry time will be 0) Refer to Standard Cycle Operation. | |||||
| *** The default dry time may need increased due to variations in load configuration, wrapping materials and the environment to completely dry the contents at these capacities | |||||
